DH48S-S High Quality AC 220V Repeat Cycle SPDT Time Relay With Socket Base
SKU: 1583- Description
- Reviews (0)
Description
Time Relay DH48S-S Digital Timer Delay Relay 0.1S-99 Hours Digital Timer Relay
1.Specification
|
Model
|
DH48S/DH48S-S |
| Operating power | AC110V,220V,380V,50HZ, DC12V 24V |
| Contact capacity | AC220V 5A DC30V 5A (Resistance Load) |
| Contact form | DH48S-1Z:SPDT(1C) |
| DH48S-2Z : SPDT(2C) | |
| DH48S-2ZH :SPDT(1C) SPDT(1C) | |
| DH48S-2Z-A: SPDT(2C) | |
| DH48S-2Z-G: SPDT(2C) | |
| DH48S-S: SPDT(1C) SPDT(2C) | |
| Operating pattern | DH48S :ON-delay DH48S-S: Repeat Circular delay,and circular working times could be choose from 1~15 |
| Repeat error | 1% |
| Timing range | DH48S:0.01~99.99s 1s~99m99s 1m~99h99m
DH48S-S :0.1s~990h |
| Outline size | 48*48*105mm |
| Mounting type | Panel mount |

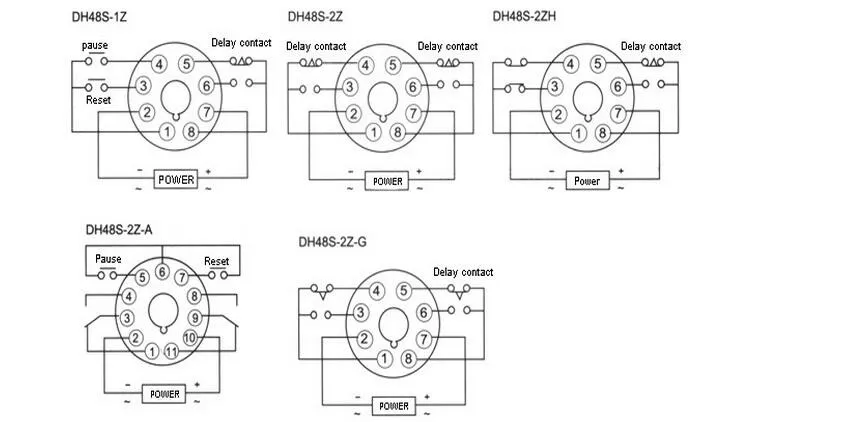

2.Connection Diagram
